No.

Item

Configuration content

Chassis

Chassis(complete vehicle)model

JYK6110Y3/Yike (Truss-type Chassis Structure)

Technical Agreement

-

Engine Model/Manufacturer

WP7 300E30/Weichai

Engine Position/Fuel Type

Rear-mounted/Diesel

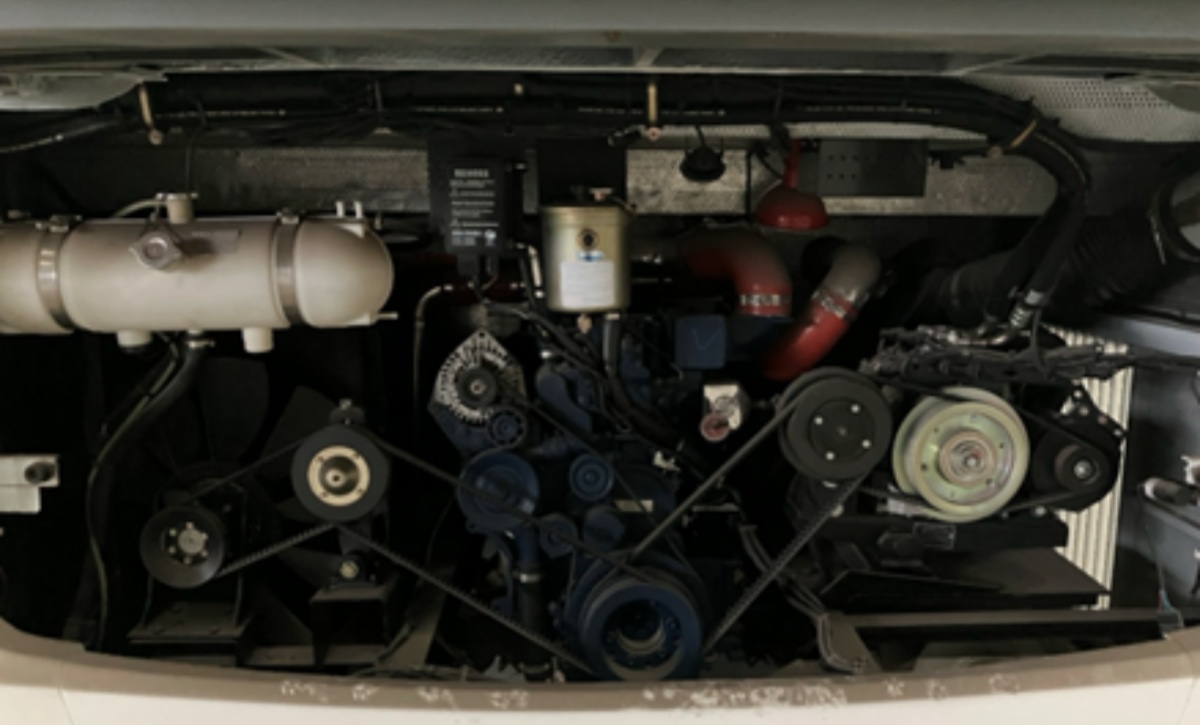

Engine Type

Rear-mounted,In-line,6-cylinder,High-pressure Common Rail,Turbocharged & Intercooled

Max Power

220/2100(Kw/rpm)

Max Torque

1250/1200-1700(N.m/rpm)

Displacement (L)

7.14

Bore * Stroke (mm)

108×136

Emission Standard

China Ⅲ

Transmission/Gear Shift Control

Fast Gear 6DS130T/Cable Control

Clutch

￠430 Diaphragm Spring Clutch

Front Axle

Nanjing Chuangjie Axle 5.5t

Drive Axle

Nanjing Chuangjie Axle 11t

Suspension

Multi-leaf Spring,Front 10 Rear 12 leaves

Steering

Integral Power Steering

Brake

Dual-circuit Air Brake compliant with ECE standards,Front/Rear Drum Brakes

Fuel Tank

160L+160L

Tires

11R22.5-16PR

Battery/Generator

180A.h×2/150A 28V

Others

ABS,Spring Energy Parking Brake,Automatic Slack Adjuster

Body

Length *Width*Height

10950×2500×3490(including A/C)

Wheelbase

5300

Front/Rear Overhang

2300/3350

Approach/Departure Angle (°)

10°/9°

Front/Rear Track (mm)

2020/1860

Maximum Gross Mass (kg)

16000

Rated Passenger Capacity (persons)

60+1

Max Speed (km/h)

100

Luggage Compartment Volume

5m³

Body Structure

Monocoque (Integral)Structure

Interior

Interior

One-piece molded soft interior

Handrails

Soft entrance handrails;left and right guardrails behind driver‘s seat

Door & Door Actuator

Pneumatic front single inward-opening door;pneumatic door actuator

Compartment Door

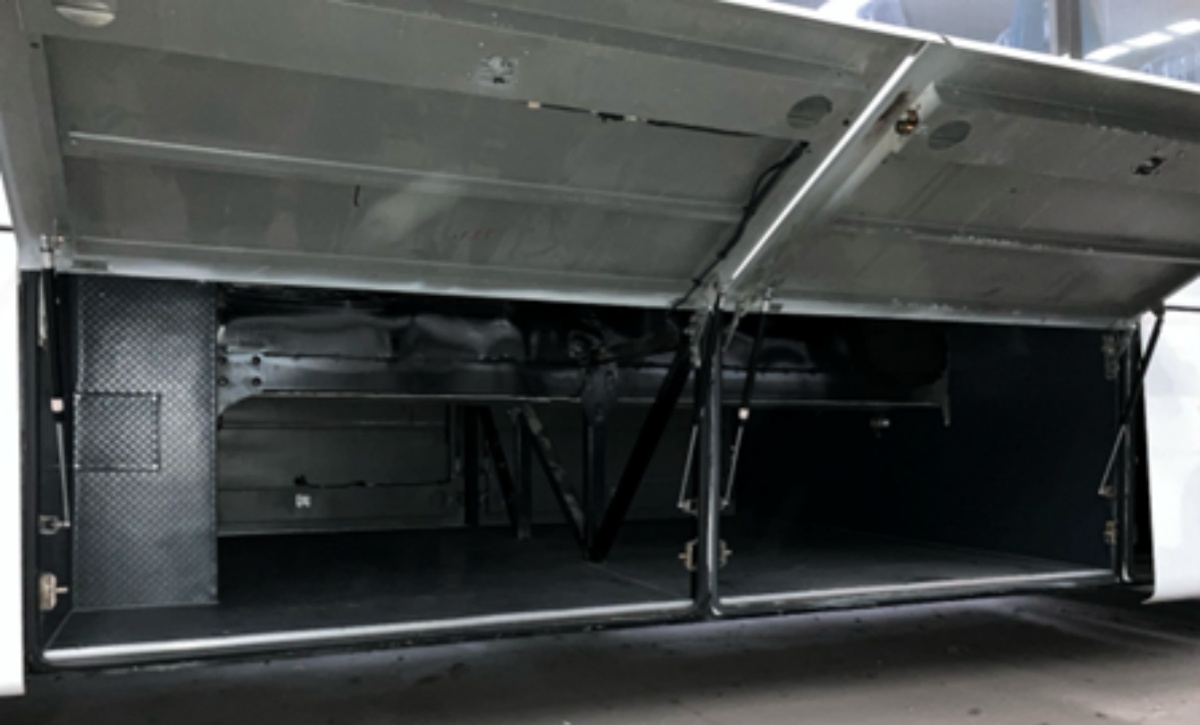

Left-right through-type luggage compartments and doors;rear upward-opening engine compartment door;air intake doors on left and right rear sides

Windshield/Side Windows

Bonded left-right split laminated front windshield,tempered rear windshield;driver’s window and left/right rear side windows are inset sliding type;others are fully sealed glass

Flooring

Domestic anti-slip flooring

Seats

Style

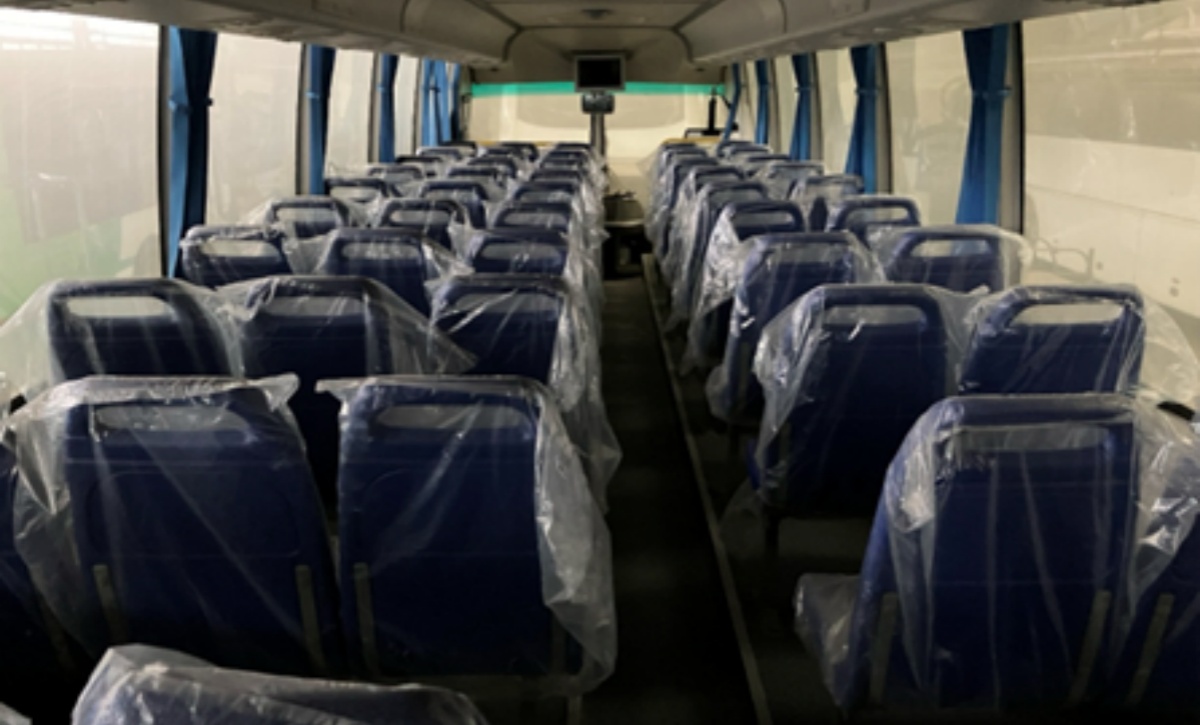

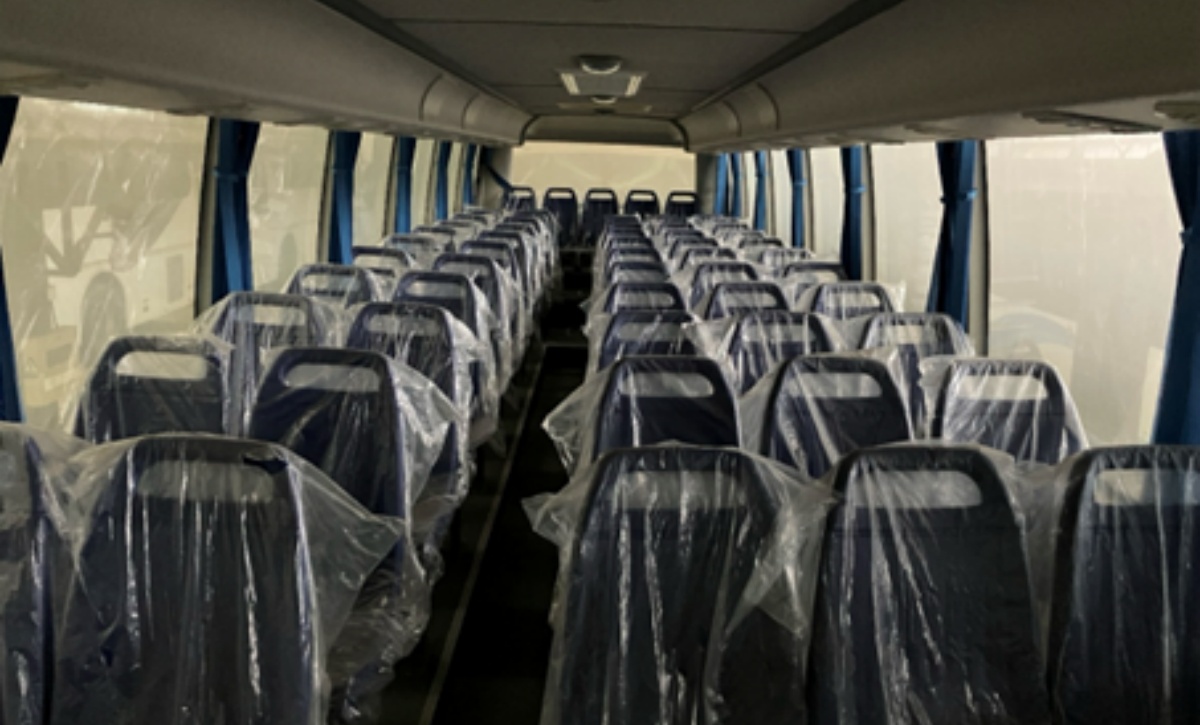

Standard 60+1 seats,overall 2+3 layout;multi-function adjustable driver’s seat

Electrical

Audio-Visual System

MP5 player;manual flip-down 17''color display

Rear view System

Armless rear view mirrors,interior mirror,reversing monitoring system

Monitoring System

Mobile phone remote monitoring system

Lights

Single-unit front/rear headlights;rectangular compartment lights

Wiper

Left-right opposed wipers with washer

Heater/Defroster/Ventilation

——/Hot water defroster/2×700B ventilation windows

A/C

Model

Roof-mountedA/C;Cooling Capacity:3000Kcal/h

Paint

Paint

Domestic solid color paint (Vehicle color and stripe pattern are customized)

Others

Foldable side window curtains;roller blind for driver’s window;semi-retractable sunshade for front windshield;rear view mirror with electronic clock;fire extinguisher (4Kg×1);3×engine compartment automatic fire extinguisher;4×safety hammers;tachograph
