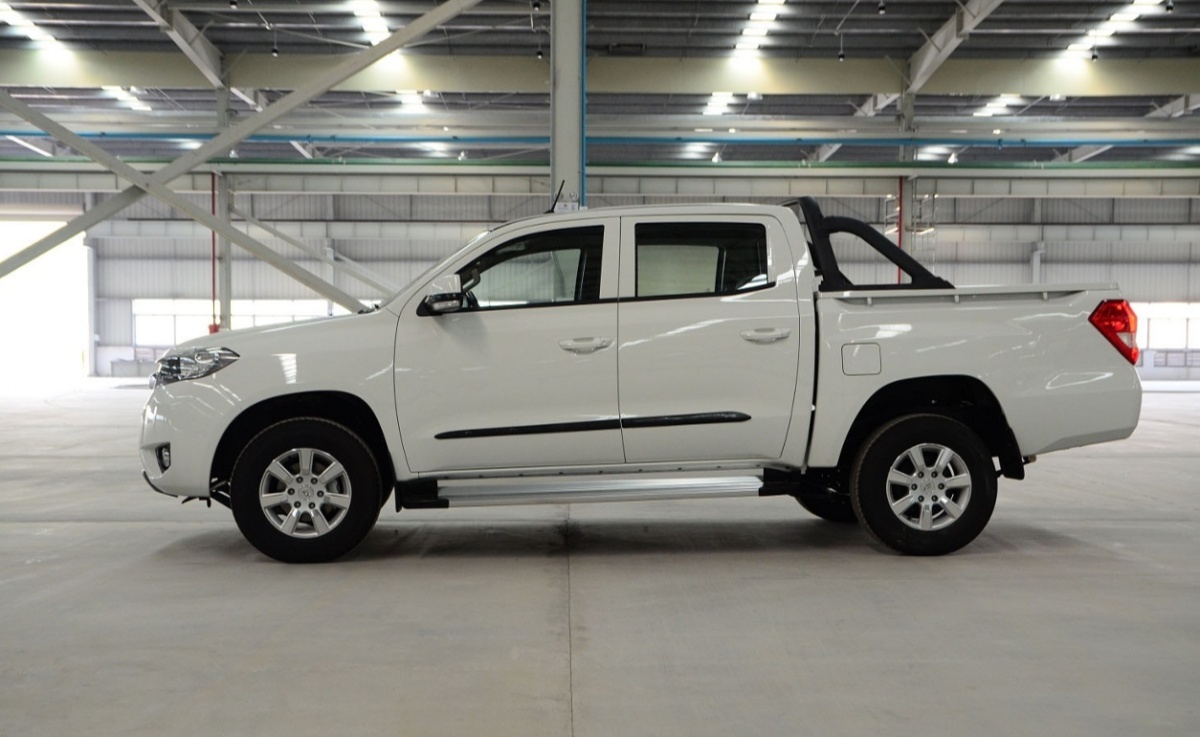

FODAY F22 PETROL PICKUP Specificationz

Model Type

1030F5

1030F5Y

1030K3

1030K3Y

Length/width/height (mm)

5330/1870/1864

5330/1870/1864

Wheel base (mm)

3,100

3,100

Curb Mass(kg)

1720

1810

1881

1930

front wheel base (mm)

1,580

1,580

rear wheel base (mm)

1,580

1,580

angle of approach/departure

26.7/27.1°

26.7/27.1°

Ground clearance (mm)

217

217

QTY of Seats

5

5

5

5

Fuel tank capacity (L)

72L

72L

Tire model

245/70R17

245/70R17

Engine model

Mitsubishi2.4L 4G694SN

Mitsubishi2.4T 4K22D4T

Engine type

Multi—Point Injection

Multi—Point Injection、turbo

Drive mode

2WD

4WD

2WD

4WD

Air displacement (cc)

2,378

2,378

compress ratio

9.8：1

9.8：1

Maximum power (kW/rpm)

100/5250

160/5250

Maximum torque (N.m/rpm)

200/3000

320/4000

Fuel specification

92 (included) and above unleaded petrol

Comprehensive fuel consumption

10.4

10.4

Transmission type

5-speed munualgearbox

6-speed munualgearbox

Suspension system (front/rear)

Double Wishbone Independent Suspension/leaf spring

Braking system

Front Ventilated Disc/rear drum

Steering system

Hydraulic power steering

FODAY F22 CBU equipment

1030F5

1030F5Y

1030K3

1030K3Y

integrated headlight

●

Steering auxiliary light of exterior rear-view mirror

●

follow me home-ceiling light

●

Front/rear high penetration foglight

●

Electricadjustingfunction of exterior rear-view mirror

●

High strength insulating glass

●

17-inch aluminum alloy wheel hub

●

full size spare wheel (steel rim)

●

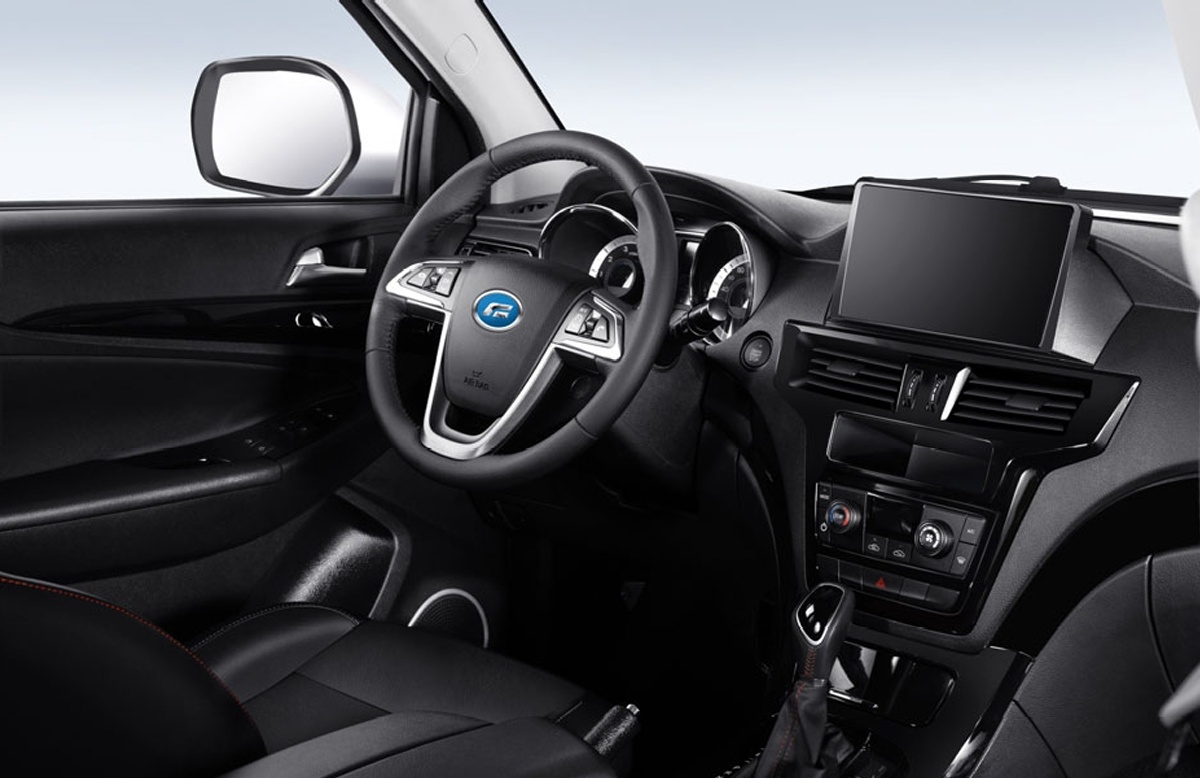

Multi-function steering wheel

●

up-down adjustable steering wheel

●

Height adjustable seat belt-first row seat

●

Manually 4-way adjustable main driver's seat

●

Manually 4-way adjustable front passenger seat

●

co-driver side sunvisor

●

Anti-lock brake system (ABS)

●

Electronic brake force distribution

●

reversing image

●

Driver/front passenger seat dual airbag

●/●

Reminder of not fastening safety belt of driver seat

●

central remote

●

Engine electronic anti-theft lock

-

three point seat belt at second row seat

●

Child safety lock

●

AC

●

One-button down for door electric window

●

Front/rear 12 V power interface

●

9-inch colorful touch screen

●

Bluetooth phone/music function

●

MP3/MP4/USB function interface

●

Speaker

●/8

FODAY F22 PETROL PICKUP Specification

Model Type

1030K3A

1030K3YA

1030K6

1030K6Y

Length/width/height (mm)

5330/1870/1864

Wheel base (mm)

3,100

Curb Mass(kg)

1720

1810

1881

1930

Gross Weight(kg)

2815

2905

2706

2775

front wheel base (mm)

1,580

rear wheel base (mm)

1,580

angle of approach/departure

26.7/27.1°

Ground clearance (mm)

217

QTY of Seats

5

Fuel tank capacity (L)

72L

Tire model

245/70R17

Engine model

Mitsubishi2.4T 4K22D4T

Engine type

Multi—Point Injection、turbo

Drive mode

2WD

4WD

2WD

4WD

Air displacement (cc)

2,378

compress ratio

9.8：1

Maximum power (kW/rpm)

160/5250

Maximum torque (N.m/rpm)

200/3000

320/4000

Fuel specification

92 (included) and above unleaded petrol

Comprehensive fuel consumption

10.4

Transmission type

6-speed automatic gearbox

6-speed munual gearbox

Suspension system (front/rear)

Double Wishbone Independent Suspension/leaf spring

Braking system

Front Ventilated Disc/rear drum

Steering system

Hydraulic power steering

FODAY F22 CBU equipment

1030F5

1030F5Y

1030K3

1030K3Y

integrated headlight

●

Steering auxiliary light of exterior rear-view mirror

●

follow me home-ceiling light

●

Front/rear high penetration foglight

●

Electricadjustingfunction of exterior rear-view mirror

●

High strength insulating glass

●

17-inch aluminum alloy wheel hub

●

full size spare wheel (steel rim)

●

Multi-function steering wheel

●

up-down adjustable steering wheel

●

Height adjustable seat belt-first row seat

●

Manually 4-way adjustable main driver's seat

●

Manually 4-way adjustable front passenger seat

●

co-driver side sunvisor

●

Anti-lock brake system (ABS)

●

Electronic brake force distribution

●

reversing image

●

Driver/front passenger seat dual airbag

●/●

Reminder of not fastening safety belt of driver seat

●

central remote

●

Engine electronic anti-theft lock

-

three point seat belt at second row seat

●

Child safety lock

●

AC

●

One-button down for door electric window

●

Front/rear 12 V power interface

●

9-inch colorful touch screen

●

Bluetooth phone/music function

●

MP3/MP4/USB function interface

●

Speaker

●/8

Electronic Stability Control System（ESC）

-

●

Tire Pressure Sensor（TPS）

-

●

button start

●

-
