EA project vehicle engineering configuration table

Project

Vehicle model

A02

A03

A12

A13

Detailed description

Left rudder basic lithium battery

Left rudder basic lithium battery - long endurance

Right rudder basic lithium battery

Right rudder basic lithium battery - long endurance

Basic parameters and structure

Overall dimensions (L*W*H) (mm)

3500×1500×1540

3500×1500×1540

3500×1500×1540

3500×1500×1540

Wheel base (mm)

2345

2345

2345

2345

Wheel track (front/rear) (mm)

1310/1300

1310/1300

1310/1300

1310/1300

Min. groud clearance (Full load) (mm)

≥130

≥130

≥130

≥130

Min. turning radius (m)

≤4.7

≤4.7

≤4.7

≤4.7

Weight of No battery  (kg)

690

690

690

690

curb weight (kg)

830

895

830

895

Gross vehicle weight (kg)

1130

1195

1130

1195

Max. speed (km/h)

●100

●100

●100

●100

Max. speed (km/h)

○85

○85

○85

○85

Max. slope of climb (%)

●≥20

●≥20

●≥20

●≥20

Max. slope of climb (%)

○≥30

○≥30

○≥30

○≥30

0~50km/h acceleration time  (S) (s)

≤6

≤6

≤6

≤6

0~50km/h acceleration time (D) (s)

≤10

≤10

≤10

≤10

Power Battery Type

Lithium Iron Phosphate

Lithium Iron Phosphate

Lithium Iron Phosphate

Lithium Iron Phosphate

Battery capacity (kwh)

15.21

23.96

15.21

23.96

Rated/Peak motor power (kW)

13/25

13/25

13/25

13/25

Max. torque (N·m)

100

100

100

100

Motor type

Permanent Magnet Synchronization

Permanent Magnet Synchronization

Permanent Magnet Synchronization

Permanent Magnet Synchronization

driving range (CLTC，KM)

≥170

≥260

≥170

≥260

Driving type

direct drive of Rear axle

direct drive of Rear axle

direct drive of Rear axle

direct drive of Rear axle

Cooling mode of Dynamic system

Natural cooling

Natural cooling

Natural cooling

Natural cooling

Charging time (h)

5-6

8-10

5-6

8-10

Auxiliary battery(AH)

32

32

32

32

Body structure

Body type

Load-bearing body

Load-bearing body

Load-bearing body

Load-bearing body

Body structure

Five doors and four seats

Five doors and four seats

Five doors and four seats

Five doors and four seats

Number of doors

5

5

5

5

Double sealing strip for door

●

●

●

●

Suspension structure

Front Suspension

Mcpherson independent suspension

Mcpherson independent suspension

Mcpherson independent suspension

Mcpherson independent suspension

Rear Suspension

Towed arm non-independent suspension(Straight arm)

Towed arm non-independent suspension(Straight arm)

Towed arm non-independent suspension(Straight arm)

Towed arm non-independent suspension(Straight arm)

Rear axle (Speed ratio)

●8.147

●8.147

●8.147

●8.147

Rear axle (Speed ratio)

○10

○10

○10

○10

tyre

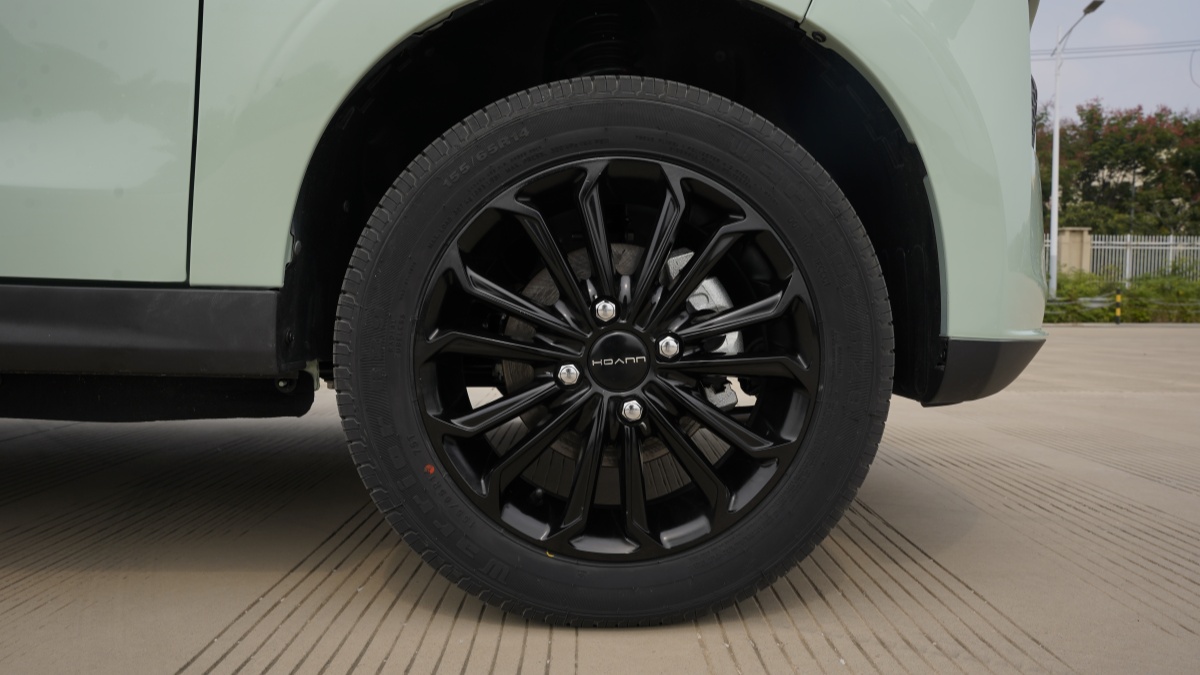

Tire Size

155/65 R14

155/65 R14

155/65 R14

155/65 R14

Steel  Wheel

●

●

●

●

Aluminium Wheel

○

○

○

○

Hubcap

●

●

●

●

turn

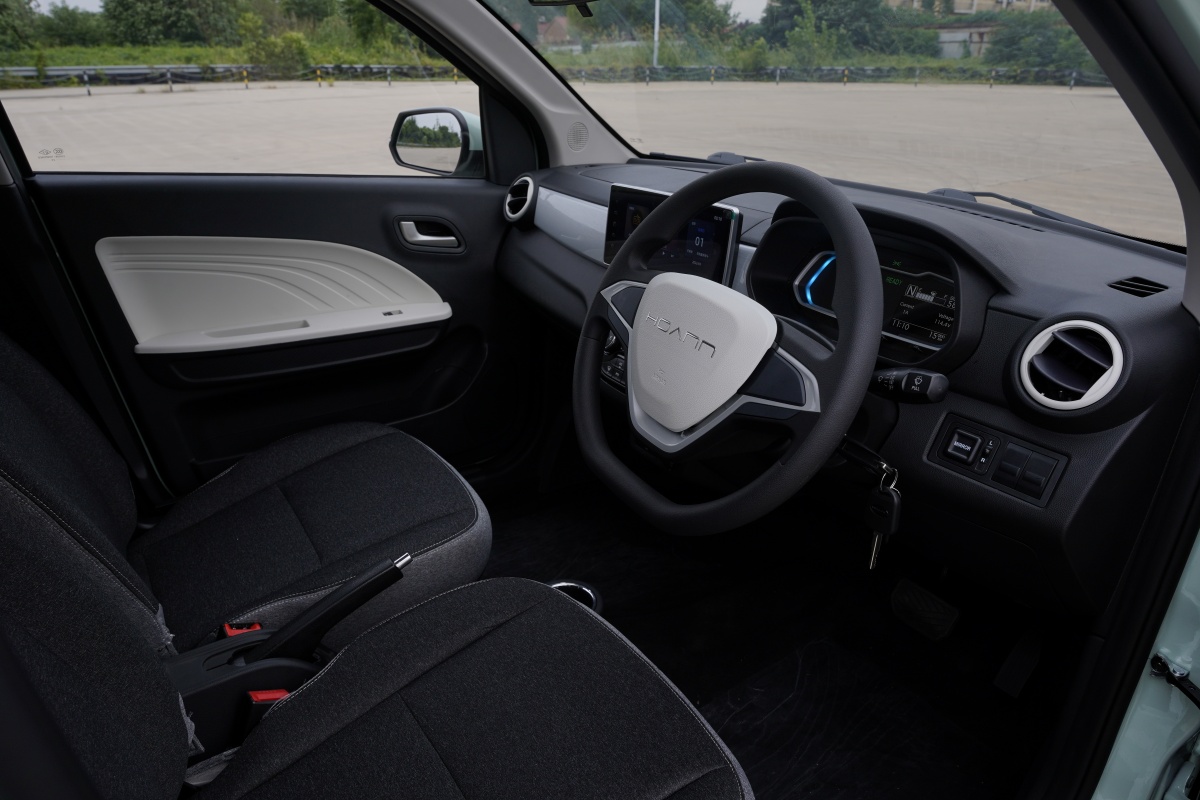

Steering Wheel

Injection molding + foaming

Injection molding + foaming

Injection molding + foaming

Injection molding + foaming

Steering gear type

Rack and pinion type

Rack and pinion type

Rack and pinion type

Rack and pinion type

Mechanical steering assist

×

×

×

×

Electronic steering assist

●

●

●

●

brake

Front/rear brake

Disc Brake/Drum Brake

Disc Brake/Drum Brake

Disc Brake/Drum Brake

Disc Brake/Drum Brake

Parking brake

Mechanical handbrake, acting on the rear wheel

Mechanical handbrake, acting on the rear wheel

Mechanical handbrake, acting on the rear wheel

Mechanical handbrake, acting on the rear wheel

Electric vacuum booster

●

●

●

●

Humanized design

Driver Seatbelt warning

●/×

●/×

●/●

●/●

Parking Warning

●

●

●

●

Open Door Danger Warning

●

●

●

●

Remote Control Key

●

●

●

●

Glass - key lifting

Four-door electric

Four-door electric

Four-door electric

Four-door electric

Glass - key lifting

one-button drop window of driver

one-button drop window of driver

one-button drop window of driver

one-button drop window of driver

Automatic window lifting at locking car

×

×

×

×

Shift Mode of Knob Type

●

●

●

●

wiper

boneless wiper

boneless wiper

boneless wiper

boneless wiper

back door opening way

Electronic switch

Electronic switch

Electronic switch

Electronic switch

children lock

●

●

●

●

same color door handle

●

●

●

●

Interior and exterior decoration

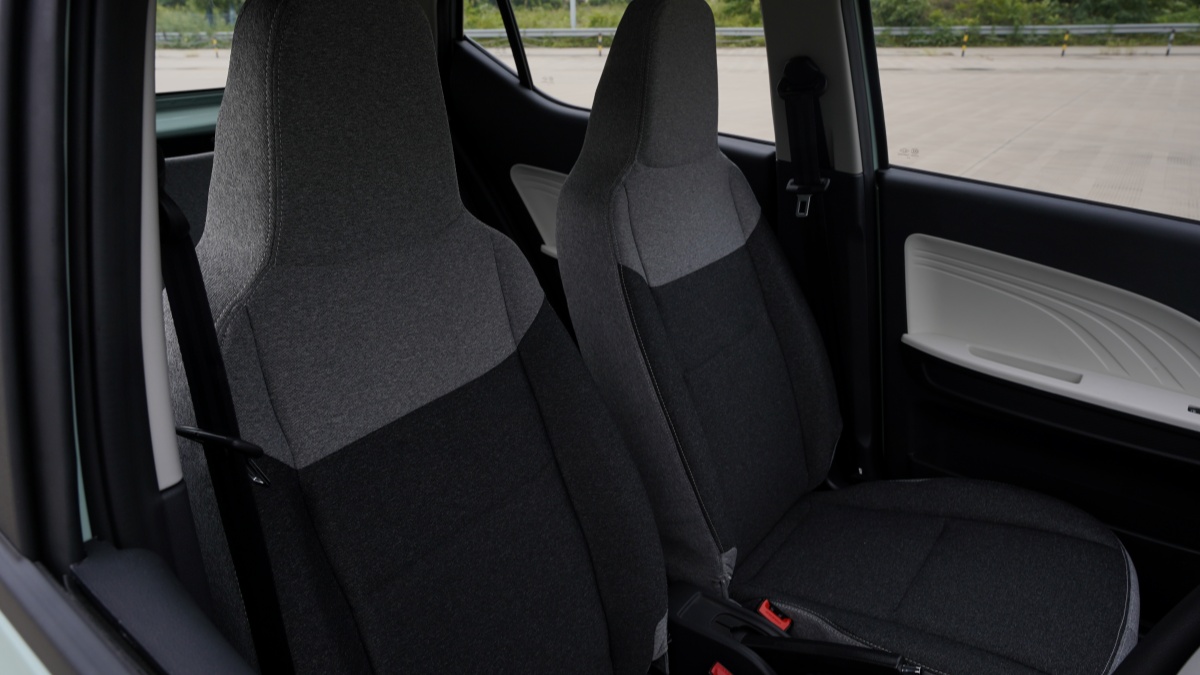

Main driver seat adjustment

Manual four directions

Manual four directions

Manual four directions

Manual four directions

The passenger seat  Adjustment

Manual four directions

Manual four directions

Manual four directions

Manual four directions

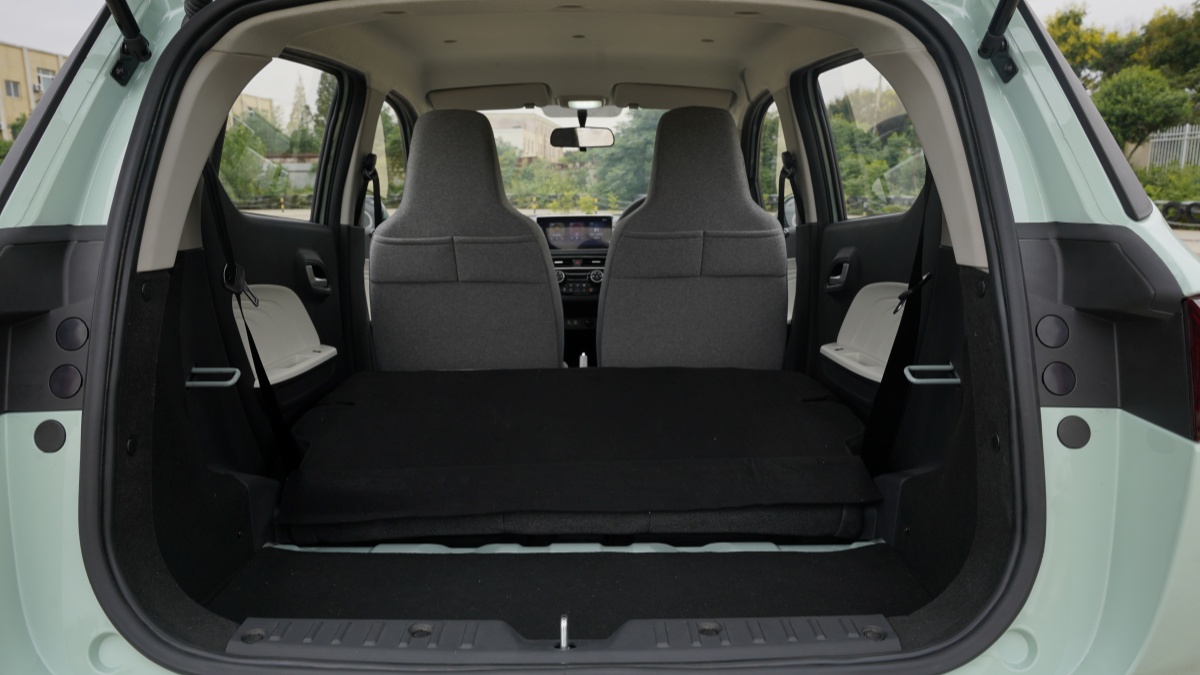

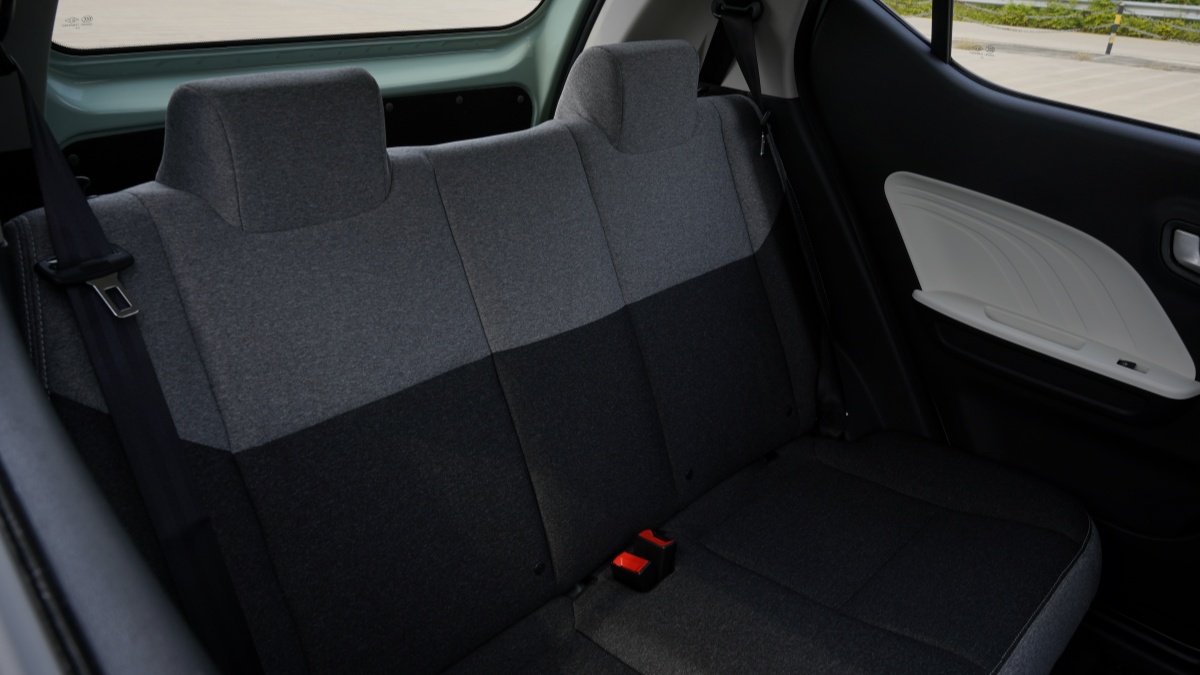

Recline the Rear Seat

●

●

●

●

Seat fabric Cloth

●

●

●

●

Seat fabric with PU

○

○

○

○

Main Driver/Passenger 3-point seatbelt

●

●

●

●

The Rear Seatbelt

●

●

●

●

The main drive visor

●

●

●

●

Passenger visor

●

●

●

●

The main drive visor with makeup mirror

×

×

×

×

Passenger visor with makeup mirror

×

×

×

×

Centrol Box

●

●

×

×

Front Reading Light

●

●

●

●

Manual Rearview Mirror

×

×

×

×

Electric Rearview Mirror

●

●

●

●

Anti-dazzle inner rearview mirror

●

●

●

●

Inside rearview mirror with Traffic recorder

×

×

×

×

Tail wing

●

●

●

●

Front protecting beam

●

●

●

●

two-color body

○

○

○

○

Black film for window frame

●

●

●

●

luggage rack

×

×

×

×

Function and configuration

Headlamp

Headlamp of Lens halogen

Headlamp of Lens halogen

Headlamp of Lens halogen

Headlamp of Lens halogen

Adjustable Headlamp Height

●

●

●

●

Follow Me Home Lamp

●

●

●

●

Driving Automatic Lockout System

●

●

●

●

Air Conditioner

Manual operation

Manual operation

Manual operation

Manual operation

PM2.5 Air conditioning filter element

×

×

×

×

Air conditioning auto-cleaning/auto-ventilation function

×

×

×

×

Daily Running Light

●

●

●

●

flowing turn light

●

●

●

●

LED decorative lamp

×

×

×

×

Rear fog lamp

●

●

●

●

halogen back light

●

●

●

●

LED back light

×

×

×

×

high brake light

●

●

●

●

Through type tail lights

×

×

×

×

12V Power Port

●

●

●

●

Lcd Meters

Monochrome liquid crystal +LED

Monochrome liquid crystal +LED

Monochrome liquid crystal +LED

Monochrome liquid crystal +LED

Vehicle Central Locking Control

●

●

●

●

Hidden mechanical door handle

×

×

×

×

Whip antenna

●

●

●

●

Shark fin antenna

×

×

×

×

Rearview mirror with LED turn light

●

●

●

●

Intelligent safety system

Driver/front Passenger Airbag

●/×

●/×

●/×

●/×

EDR

●

●

●

●

ABS/EBD

●

●

●

●

Tire  Pressure Warning

●

●

●

●

Brake Energy Recovery System

●

●

●

●

Pre-heating of Battery

●

●

●

●

Battery with heating

●

●

●

●

Rear ISO-FIX child seat port

●

●

●

●

HAC Ramp assist system

●

●

●

●

driving mode

E/S/D driving mode

E/S/D driving mode

E/S/D driving mode

E/S/D driving mode

Flameout-unlock

●

●

●

●

intelligent recharge of accumulator

×

×

×

×

Power battery protection system

×

×

×

×

Automatically power off at high voltage failure

●

●

●

●

Automatic blackout at crushing

●

●

●

●

Intelligent voice prompt

×

×

×

×

Millimeter-wave Radar

●

●

●

●

One-button start

×

×

×

×

Low Speed Pedestrian Alert System

●

●

●

●

Entertainment system

Speakers Number

2

2

2

2

radio

×

×

×

×

Bluetooth

●

●

●

●

9 inch MP5 control Screen (with radio)

●

●

×

×

10.25 inch LCD Screen

×

×

●

●

4G Car Terminal（T-BOX）

×

×

×

×

Vehicle Backup Camera

●

●

●

●

USB(with power port)

1

1

1

1

Vehicle tool

Reflective vest

●

●

●

●

triangle warning

●

●

●

●

Front tow

●

●

●

●

"●" means with this configuration, "×" means without this configuration, and "○" means optional.
